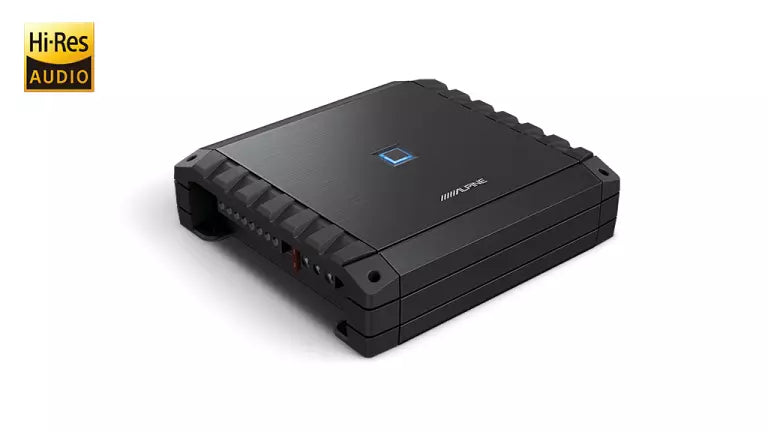

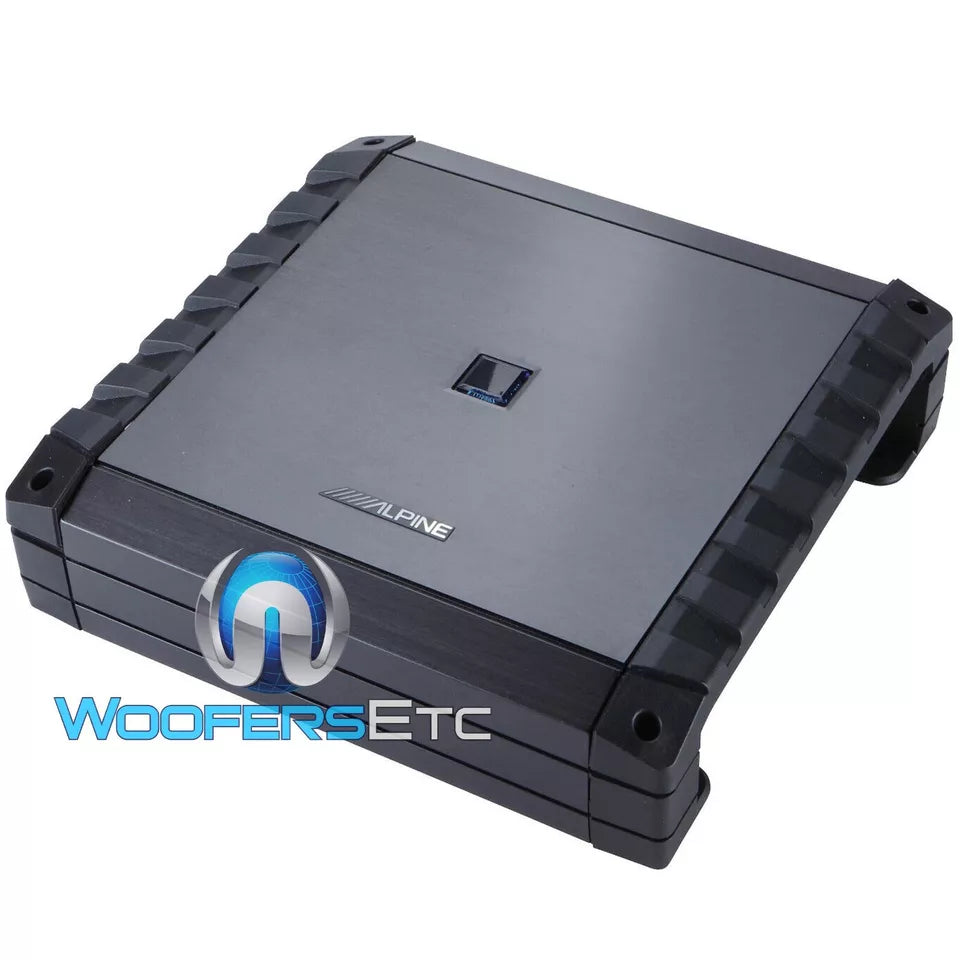

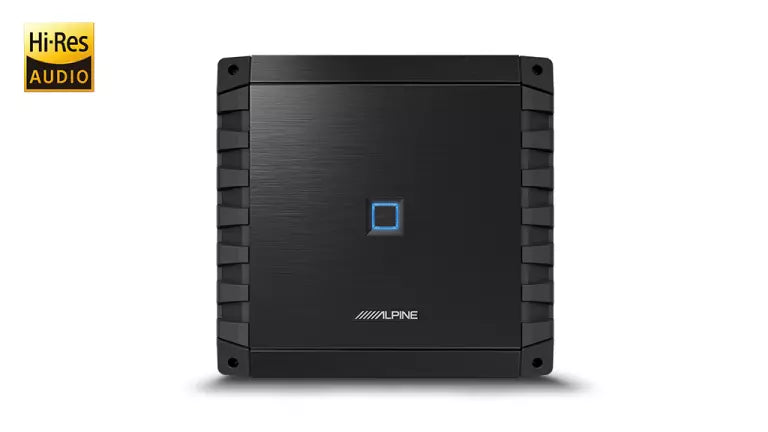

Alpine S2-Series 4/3/2 Channel Amplifier-S2-A36F
The next generation of Alpine S-Series amplifiers are designed to take your car audio experience to the next level without breaking the bank. With a sleek new redesign and upgraded features from their predecessors, these amplifiers offer exceptional performance and power on an affordable budget.
The S-Series S2-A36F 4-channel amplifier delivers 60 Watts RMS @4 Ohms or 90 Watts RMS @2 Ohms of pristine high-fidelity signal to each of your car’s front and rear speakers, adding sweet, clear sound to your vehicle.
The amp brings your music to life being Hi-Res Audio certified, with its precise details and emotional power clearly revealed with a frequency response up to 40kHz. For a 3-channel 2-way system, you could also use the amp to drive a pair of front speakers with 60 Watts RMS each, while powering a subwoofer with 180 Watts RMS from the bridged rear channels. A variable mid-bass boost on those rear channels allows you to dial in some extra kick and impact to your system’s low-frequency sound. You can even add the optional wired remote RUX-KNOB2 to control the level of the rear channels from your front seat.
High- and low-pass filters put you in command of the frequency spectrum that reaches your speakers and subs. The amp includes preamp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.
Features

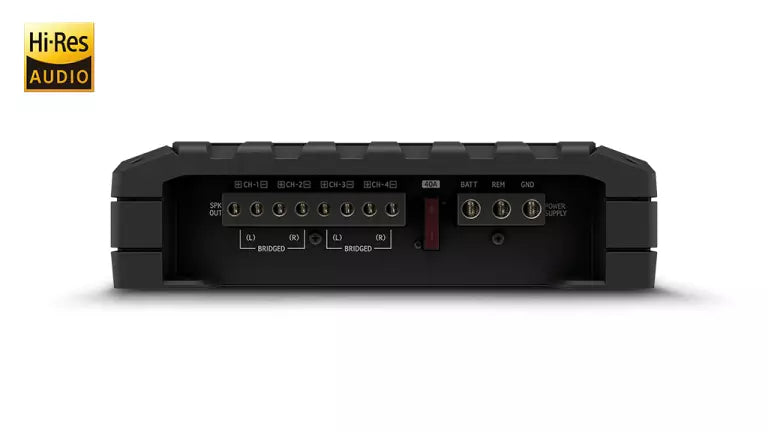

Install
- Terminal Layout: Two-sided
- Included terminal covers
- Screw terminals (for speaker and power cables)
General
- Class-D Amplification (Digital)
- Hi-Res Audio Certified
- Channel Design: 4/3/2 Channel

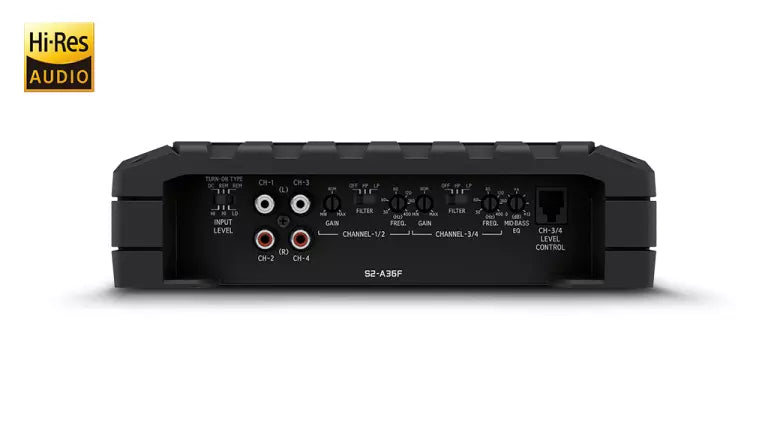

- Side panel controls
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input
- 3 turn-on modes (DC HI, Remote HI, Remote LO)
- Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
- Adjustable Gain Control
- Mid-Bass EQ
- Remote Bass Control Ready (for channel 3+4 in bridged mode only)
Specifications
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 90W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 60W
- Bridged, 4 Ohms, 14.4V: 2 x 180W
Sound Tuning
- Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
- Mid-Bass EQ (0 to +12dB)
General
- Power Requirements: 14.4 V.DC (9 – 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.2V – 4.0V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 4, SPK Cable AWG 8
- Frequency Response: 10Hz – 40kHz
- THD+N (@ 10W into 4 Ohms): <0.03%
- Damping Factor: >100
- Weight: 2.2kg
Dimensions
- Heat Sink (WxHxD) mm: 220 x 57 x 210
