Halo9 9” High-Res Audio Receiver with Wireless Apple CarPlay / Wireless Android Auto / HDMI / USB / Dual Camera / Bluetooth / Hi-Res Audio Wireless / LDAC / DAB+ Suitable for Ford Ranger PX II/III -F309E

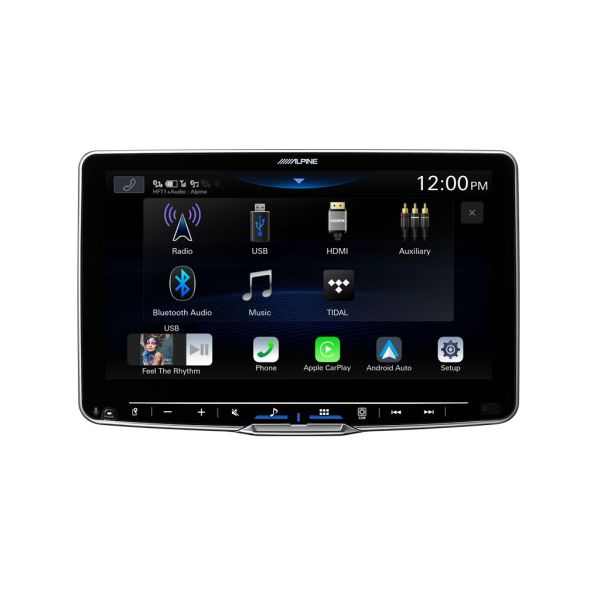

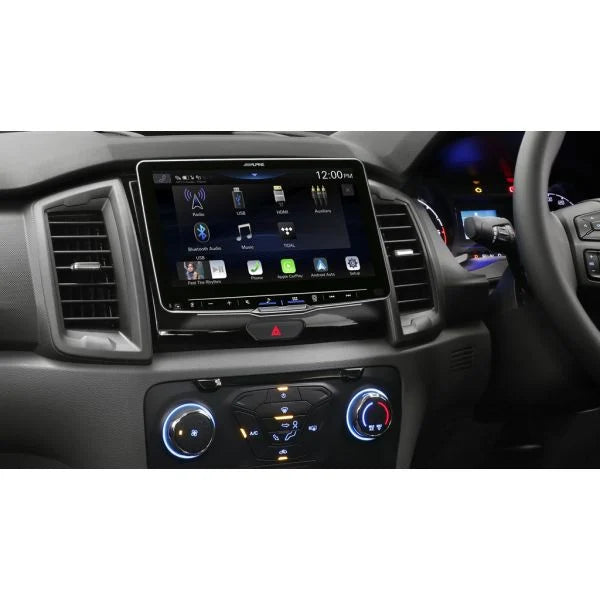

Combine both functionality and interior appeal in your Ranger with Alpine’s premium 9” multimedia infotainment system. The iLX-F509A introduces industry-first innovations, harmoniously integrating a stunning high-definition WXGA display, Hi-Res Audio specifications and advanced wireless connectivity.

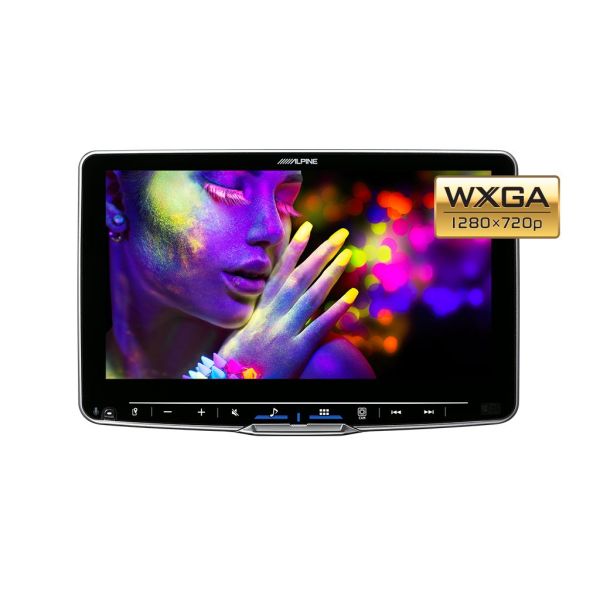

Hi-definition video from a USB or HDMI sources has never looked so good with the ultra-high-quality WXGA display. Equipped with 2.7 million individual pixel elements and a revolutionary laminated construction, the iLX-F509A reproduces life-like images and colour vibrancy to the dashboard to provide the highest standard of image performance.

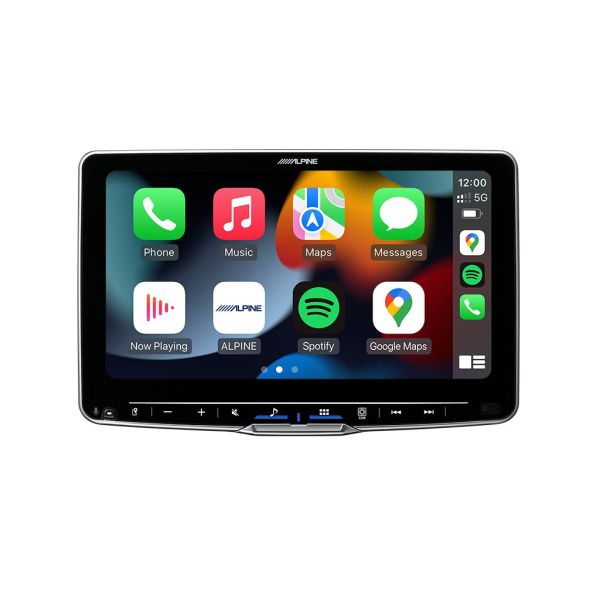

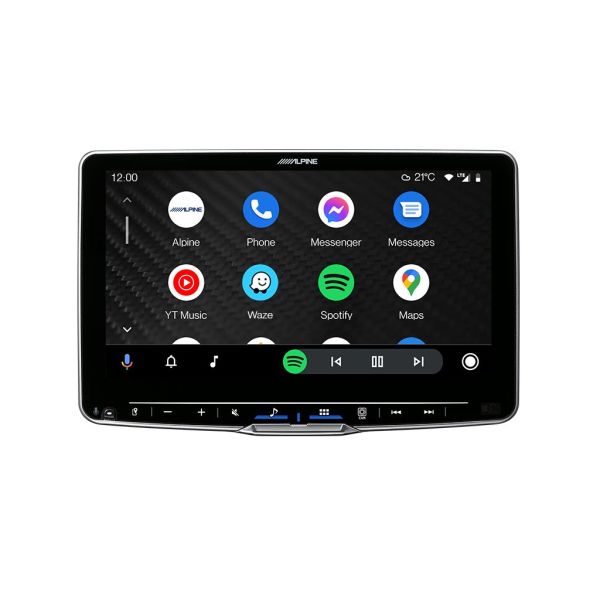

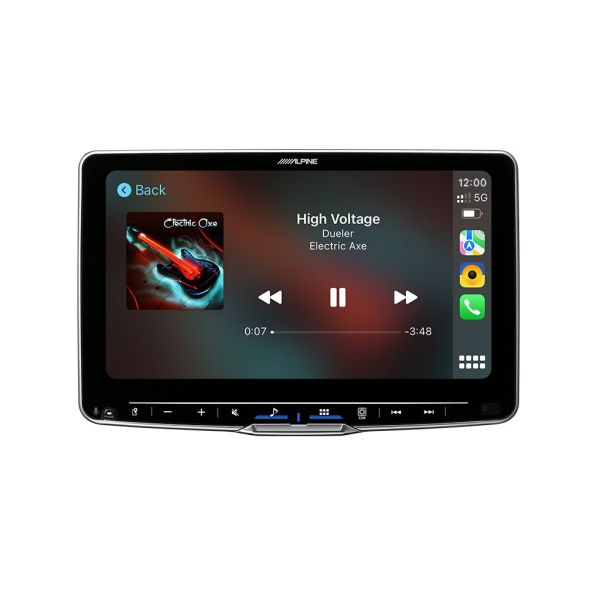

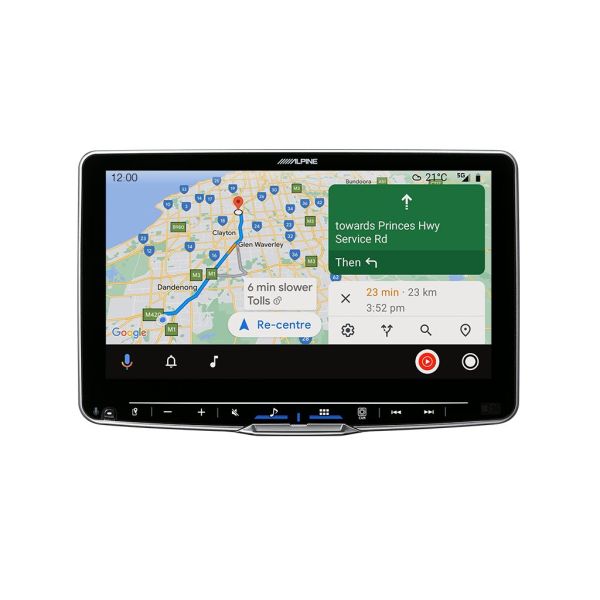

Wireless Apple CarPlay and Android Auto allows for an endless array of smartphone features and entertainment to the dashboard. Get directions, make calls, send and receive messages and listen to high-resolution streaming music all without a cable in sight.

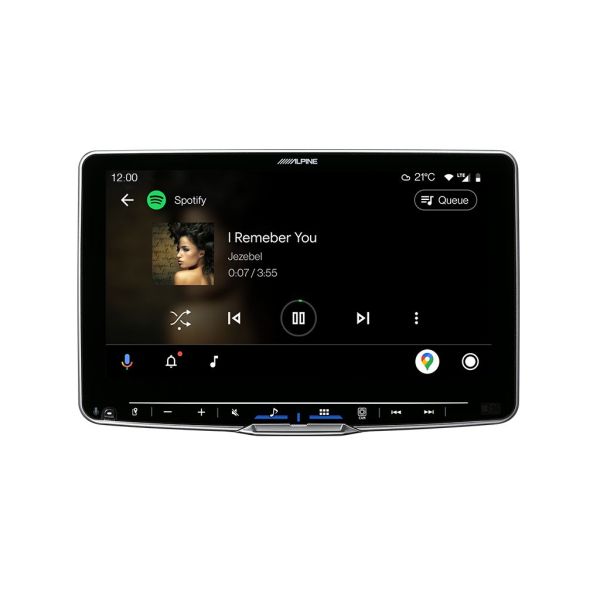

The iLX-F509A brings the concert to the cockpit with Hi-Res Audio and LDAC wireless technology, letting you play high-resolution music via USB, or streaming via smartphone music services and apps revealing the original recording the way the artist intended.
With the world’s first built-in Class-D amplifier the iLX-F509A reinvents head unit power, delivering the richness and acoustic crescendos of virtually any music style and live performances through any loudspeaker.
With unrivalled technology and connectivity, as well as impeccable visual clarity and high-resolution audio, the iLX-F509A is a magnificent centrepiece for any dashboard—bringing the emotion of music and pure enjoyment to every drive.
Features

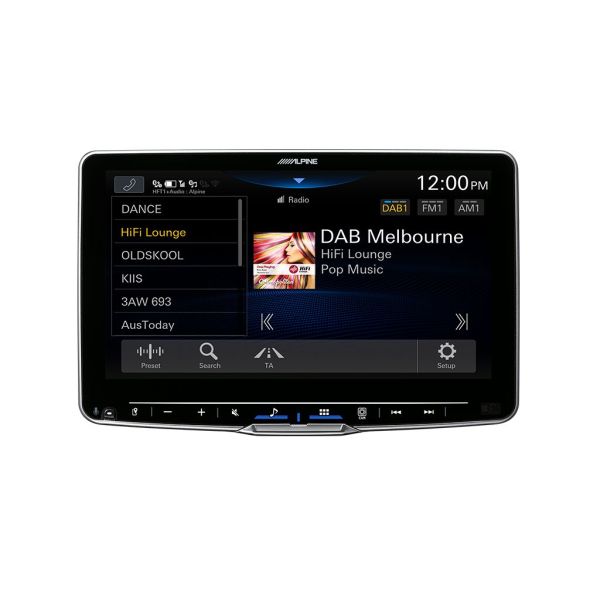

Radio / DAB Tuner
- Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function

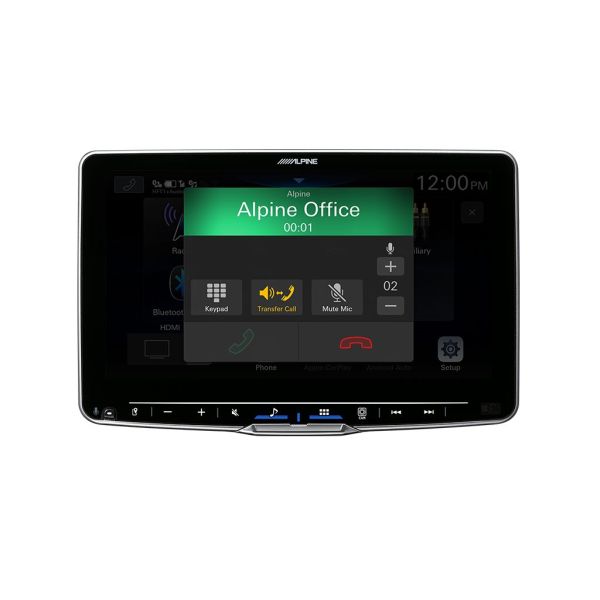

BLUETOOTH®
- Built-in BLUETOOTH® Module V4.2
- HFP (Hands-Free Profile) Compatible
- A2DP (Advanced Audio Distribution Profile) Compatible
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Phone Book Synchronisation
- Speed Dial: 4 Preset Memory (per phone)
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: (Outgoing and Incoming)
- 24 Menu Languages
- Microphone Included
Works with iPhone®
- Compatible with iPhones featuring a lightning connector
- Various search functions and Album Artwork Display
- Battery Charging
Connectivity
- Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
- Works with Android Auto wirelessly (requires Android Auto enabled handset) **Not all handsets supported and may require wired connection.
Navigation Function
- Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
- Includes GPS / Glonass enabled navigation antenna
USB Media Connection
- 2x USB cable included
- USB port 1: data port / USB port 2: charging port
- Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Various search functions included
Sound Tuning

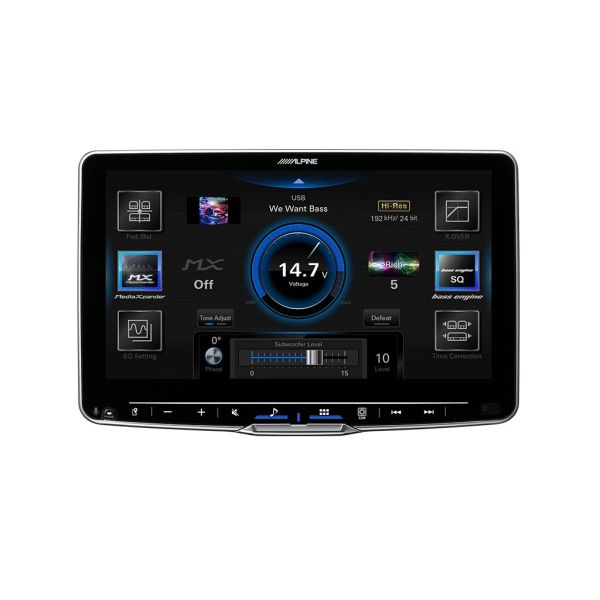

- Bass Engine SQ and Bass Engine PRO sound tuning
- Subwoofer Level Adjustment
- 4 V PreOut

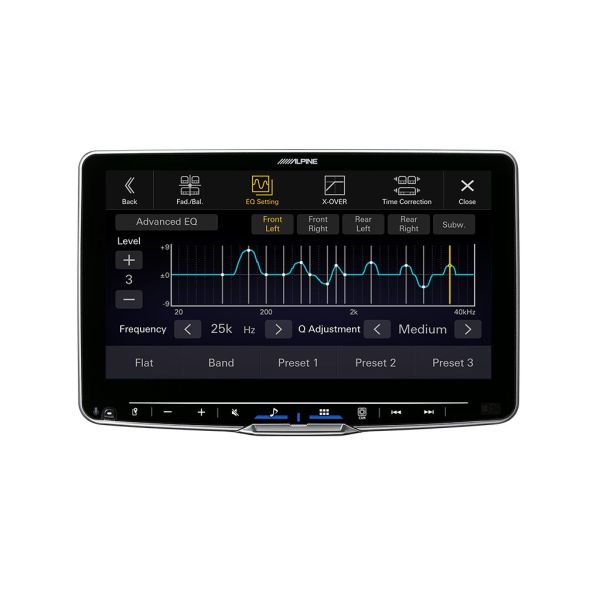

- 10 Equalizer PreSets
- 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
- 6-Channel Digital Time Correction
- 2-way Digital Crossover
- Independent Source Volume Level Setting

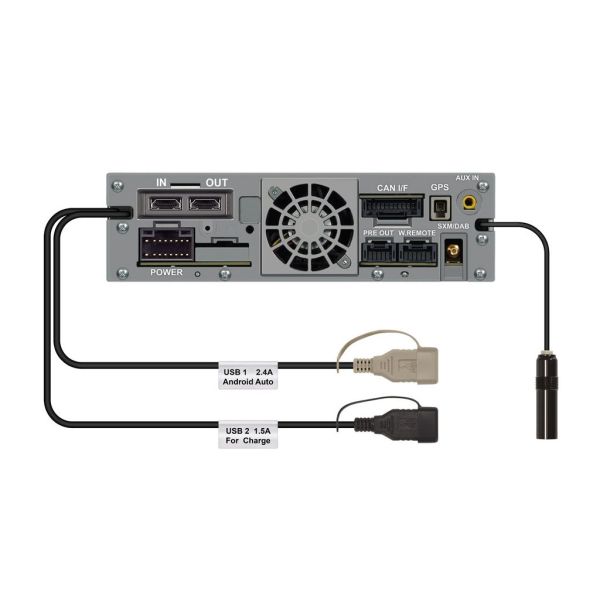

General
- 4x 50 Watts Class-D High Power Amplifier
- 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
- Display angle adjustable after installation
- 3 PreOuts (4 V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5 mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)
- Steering Wheel Remote Control Ready

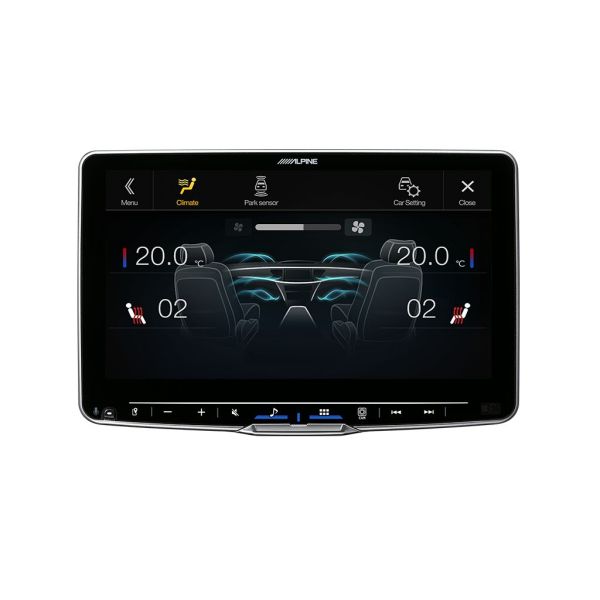

- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box

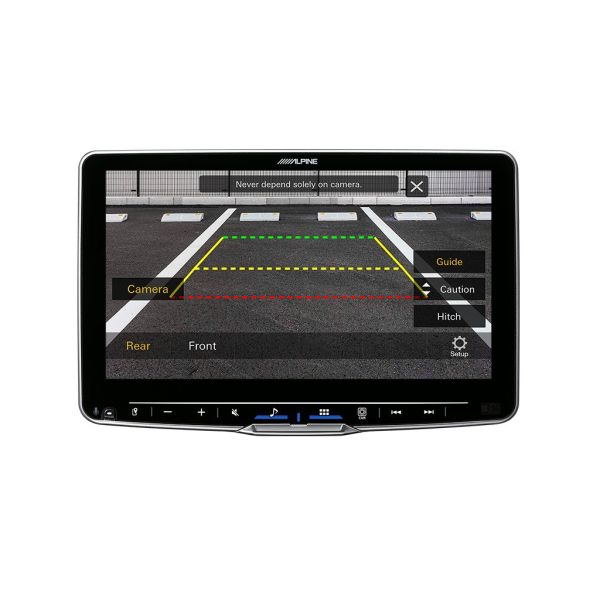

- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
- 3-Year Warranty when installed by Authorised Alpine Dealer
Specifications
General
- Power Requirement – 14.4V DC (11-16V allowable)
- Operating Temperature – -20°C to +60°C
- Power Output – 50W x 4
- Maximum Current Consumption – 15A
Audio Output Level
- Preout (Front, Rear): 4V/10k ohms (max.)
- Preout (Subwoofer): 4V/10k ohms (max.)
Weight
- 2.3kg
Screen
- Screen Size: 9 inch Laminated WXGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 2,764,800 pixels (1280 x 720 x 3)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
FM Tuner
- Tuning Range – 87.5 -105MHz
- Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
- 50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
- Alternate Channel Selectivity – 80dB
- Signal-to-Noise Ratio – 65dB
- Stereo Seperation – 35dB
AM Tuner
- Tuning Range – 531-1701 kHz
- Usable Sensitivity – 25.1μV/28 dBf
DAB Tuner
- Tuning Range – 174 – 240 MHz
- Usable Sensitivity – -100dBm
- Signal-to-Noise Ratio – 90dB
USB (1)
- USB Requirements: USB 2.0
- Max. Power Consumption: 2,400 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32, exFAT
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.005%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 95 dB
- Channel Separation (at 1kHz): 90 dB
USB (2)
- USB Class: Charge Only
- Max. Power Consumption: 1,500 mA (CDP Support)
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
- Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
- HFP: HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP: A2DP (Advanced Audio Distribution Profile)
- AVRCP: AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
HDMI Section
- Input Format: 720p/480p/VGA
- Output Format: 720p/480p
GPS
- Reception Frequency 1575.42 +/- 1.023 MHz
- Reception Sensitivity (Search) -136dB max.
Wi-Fi
Frequency Ranges
- IEEE 802.11 b/g/n (2.4 GHz)
- IEEE 802.11 a/n/ac (5 GHz)
Channels
- 1 -13 ch (2.4 GHz)
- 149 – 165 ch (5GHz)
Security Protocols
- WPA3/WPA2-PSK (TKIP, AES)
Dimensions
- Din Size: 1DIN chassis and 9” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 149.6mm
- Display Size (W x H x D) mm: 232.5 x 151.1 x 54.7
